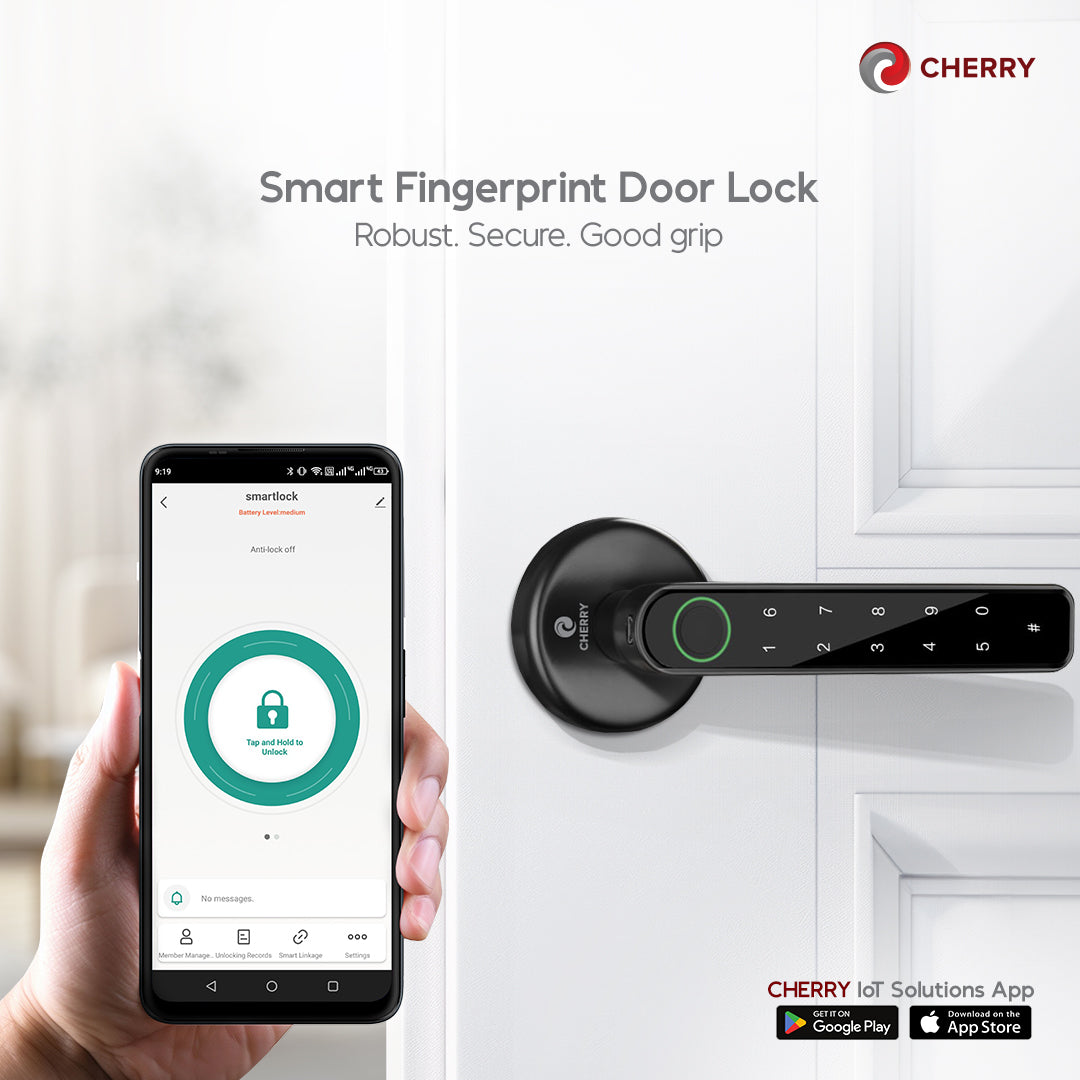

CHERRY Smart Fingerprint Door Lock
CHERRY Smart Fingerprint Door Lock
Couldn't load pickup availability
Product Description
Specifications
Shipping Policy
Warranty

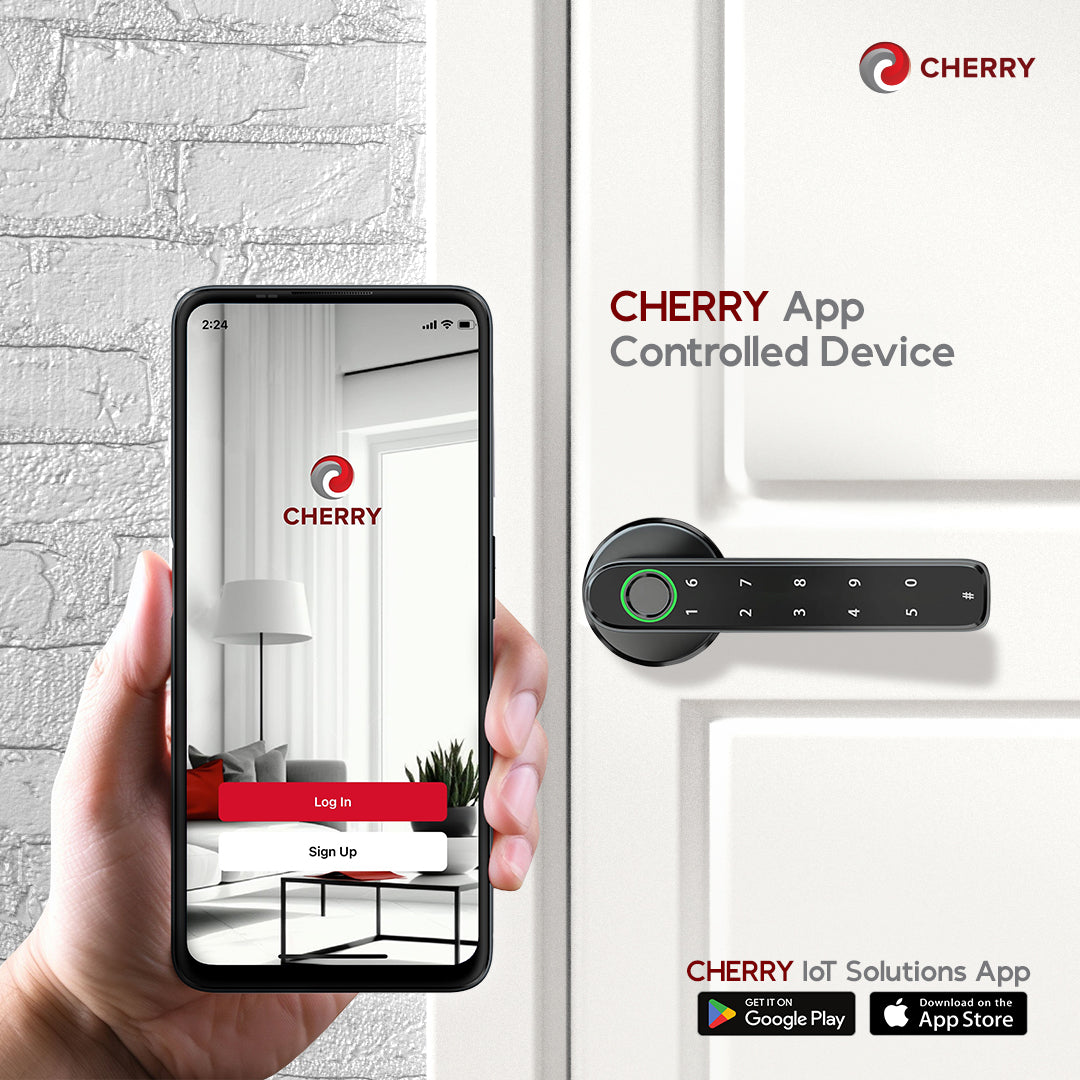

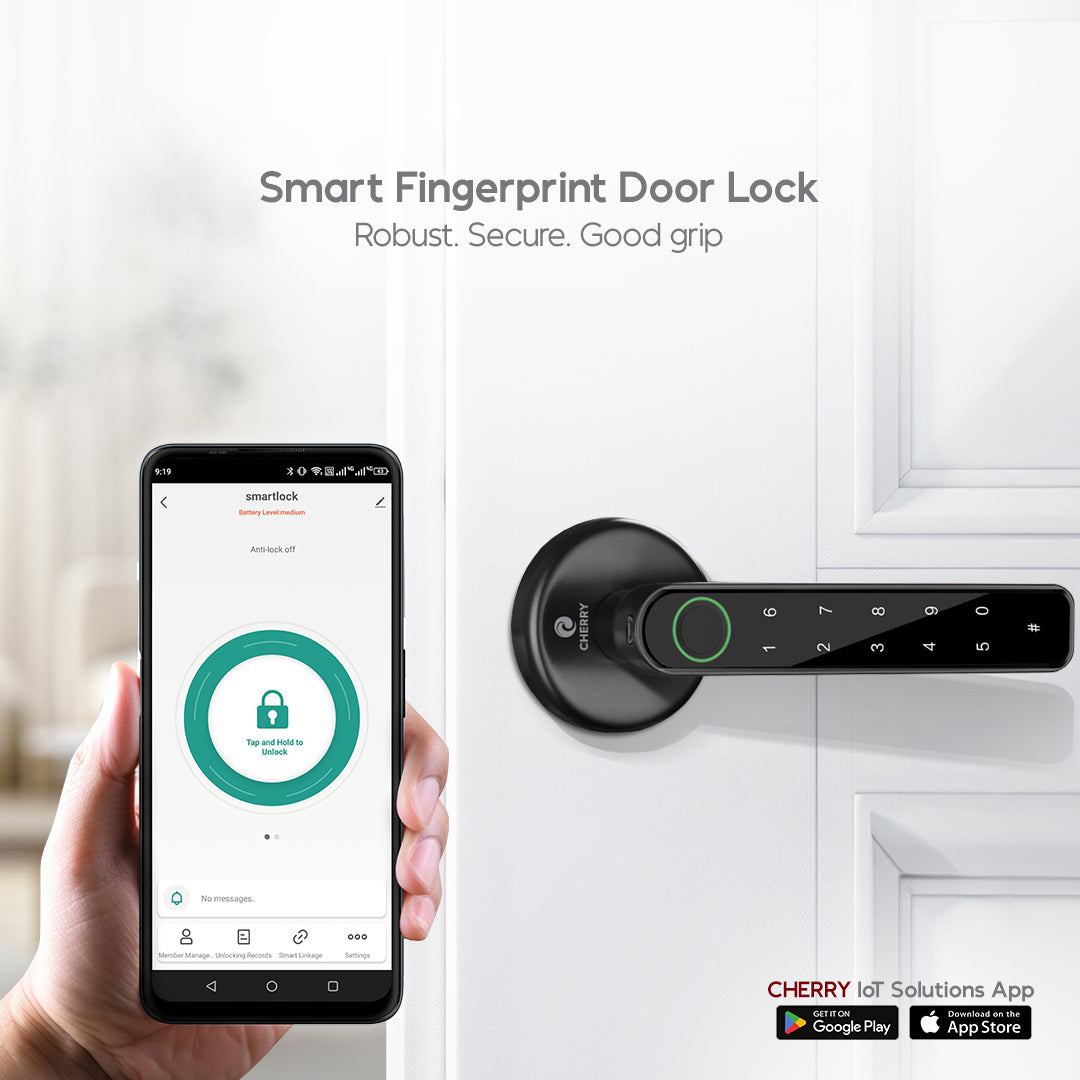

CHERRY App Controlled Device

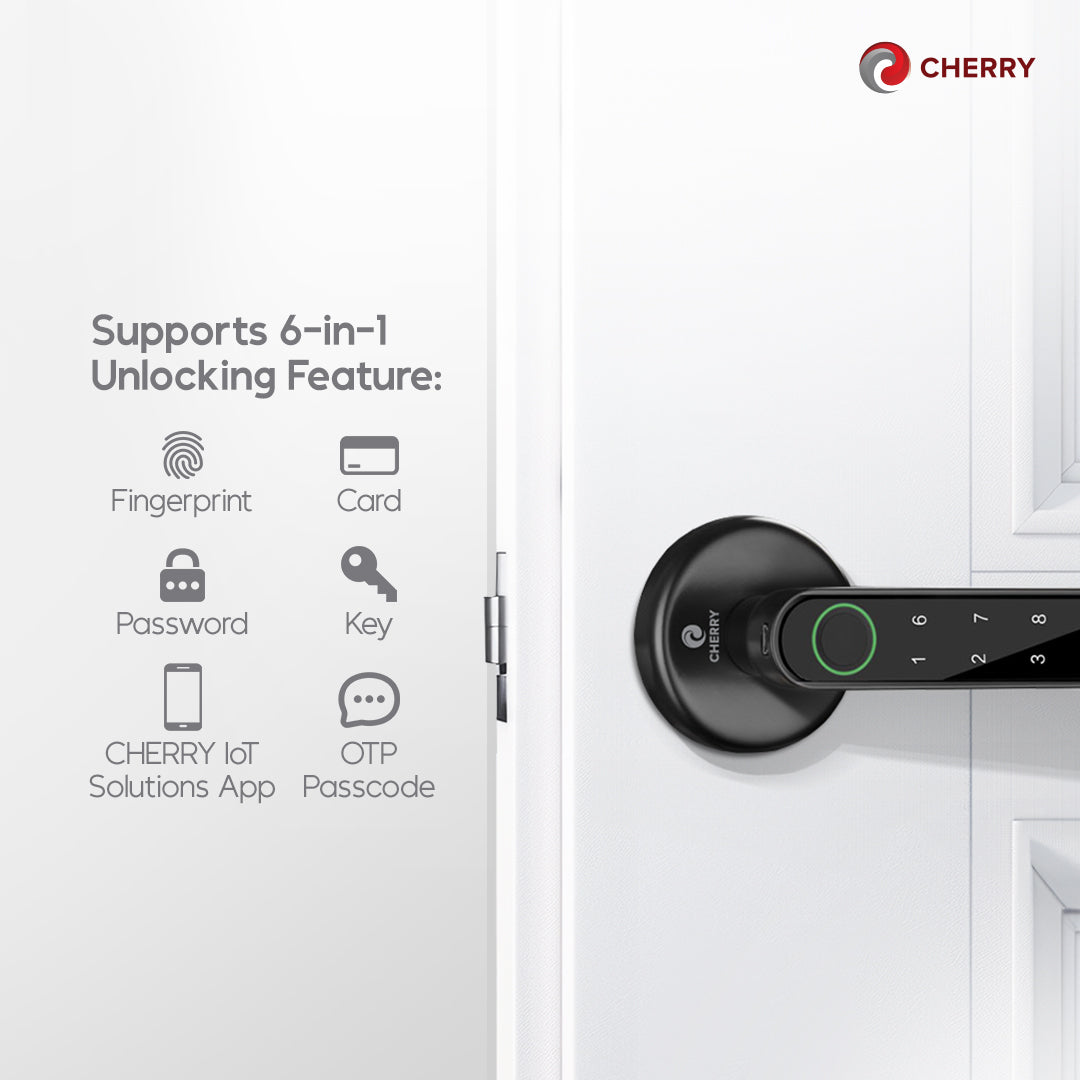

Supports 6-in-1 Unlocking Feature:
1. Fingerprint
2. Card
3. Password
4. Key
5. CHERRY IoT Solutions App
6. OTP Passcode
OTP Passcode: Create up to 26 temporary passcodes
System Capacity:
- Passcode: max. 100
- Fingerprint:max:100

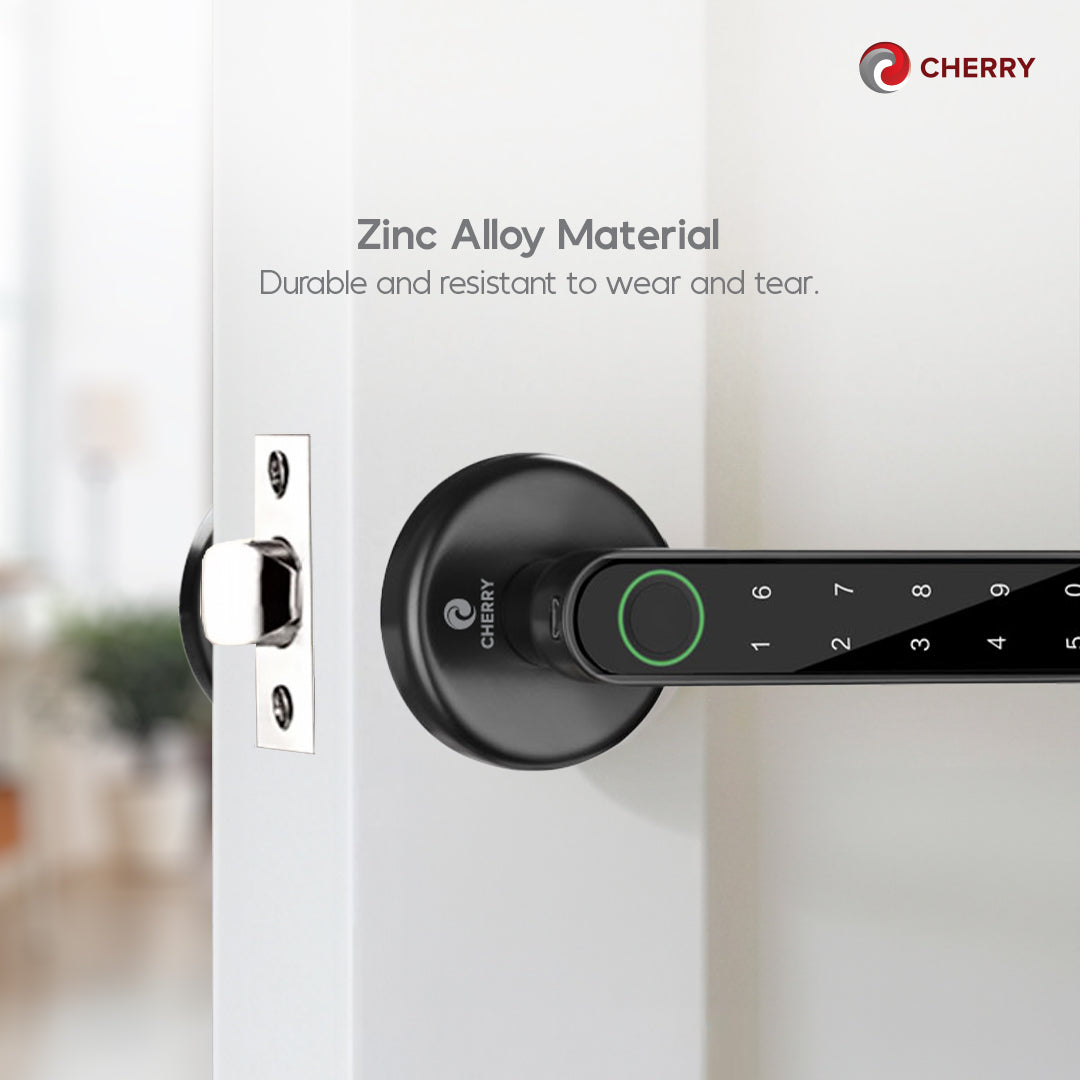

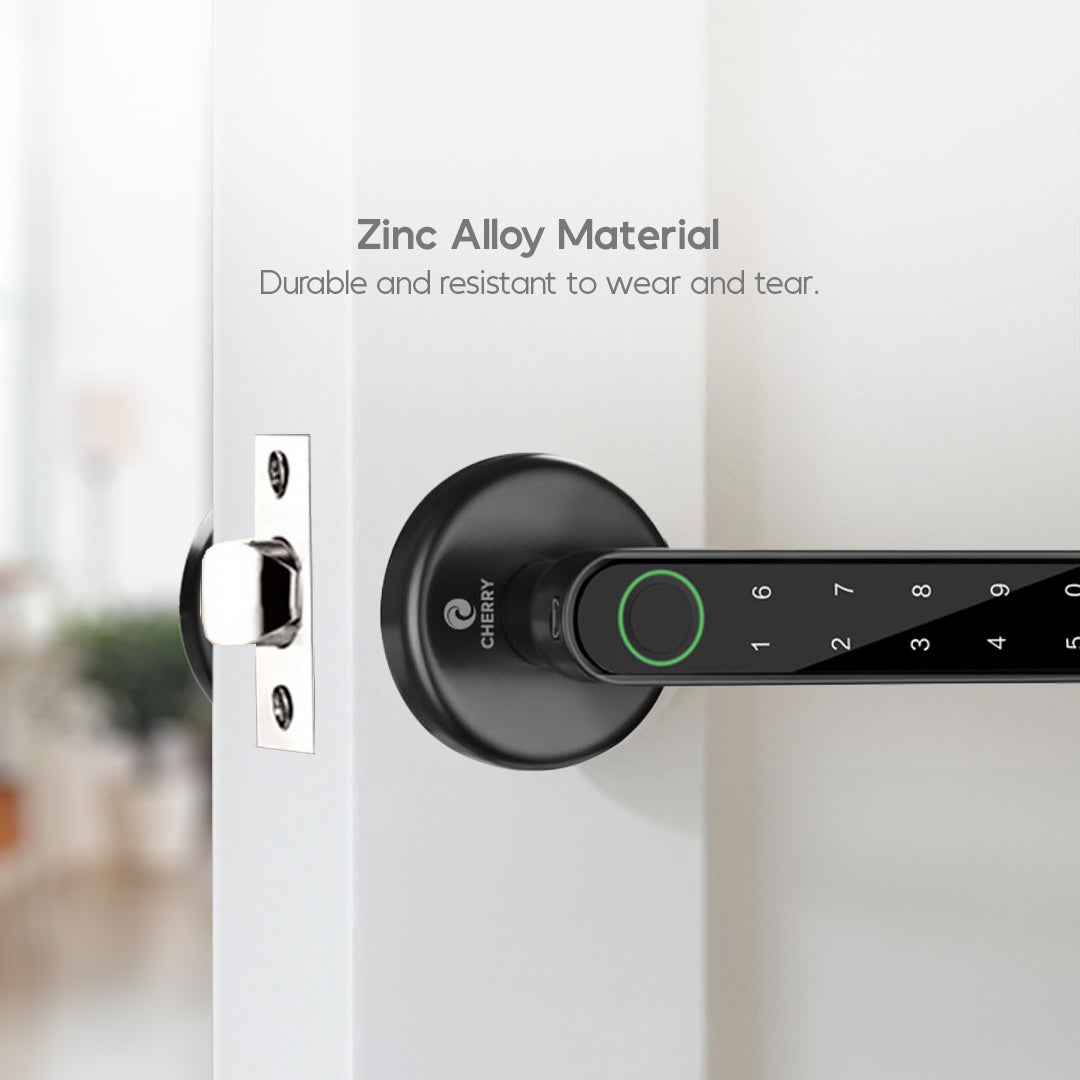

Zinc Alloy Material: Durable and resistant to wear and tear.

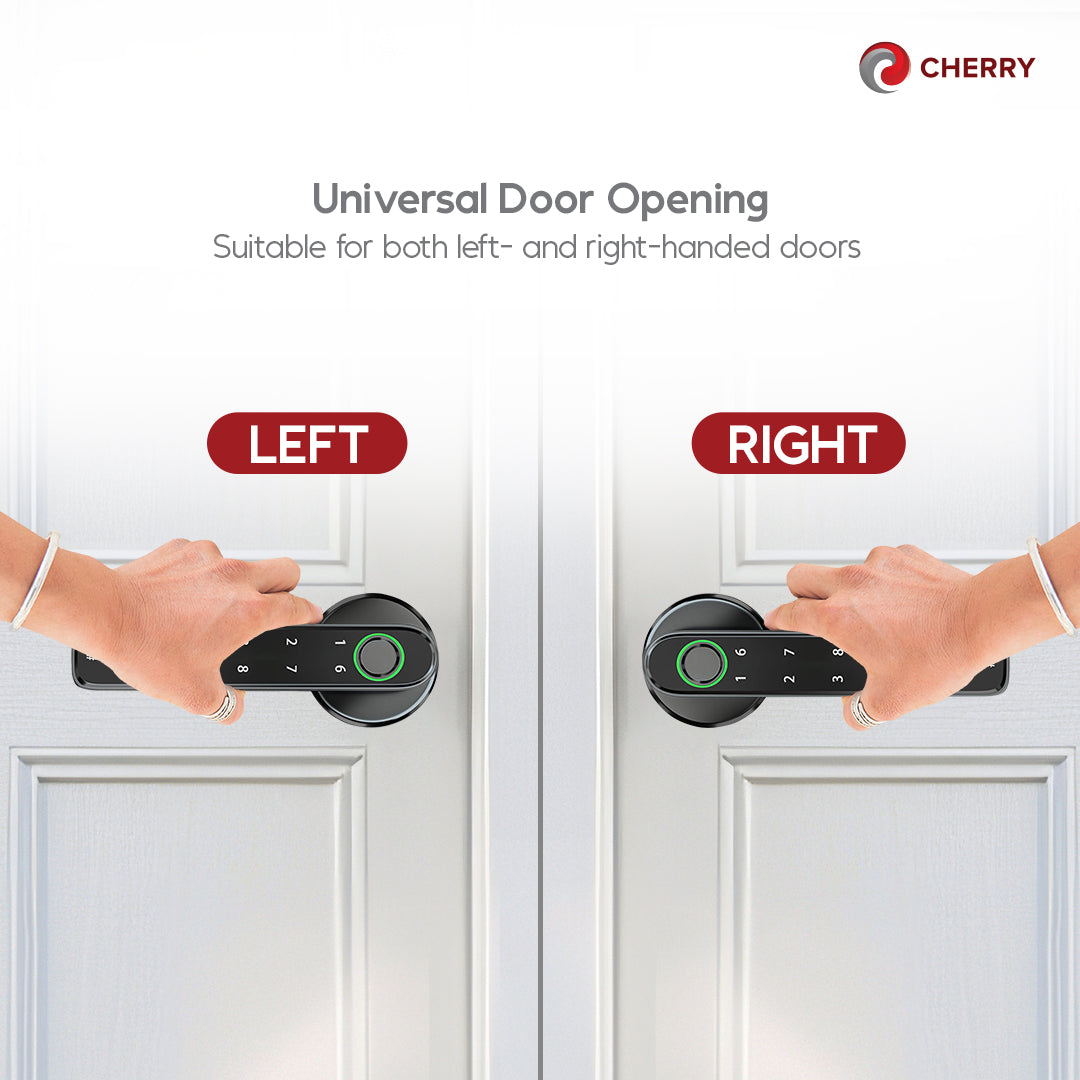

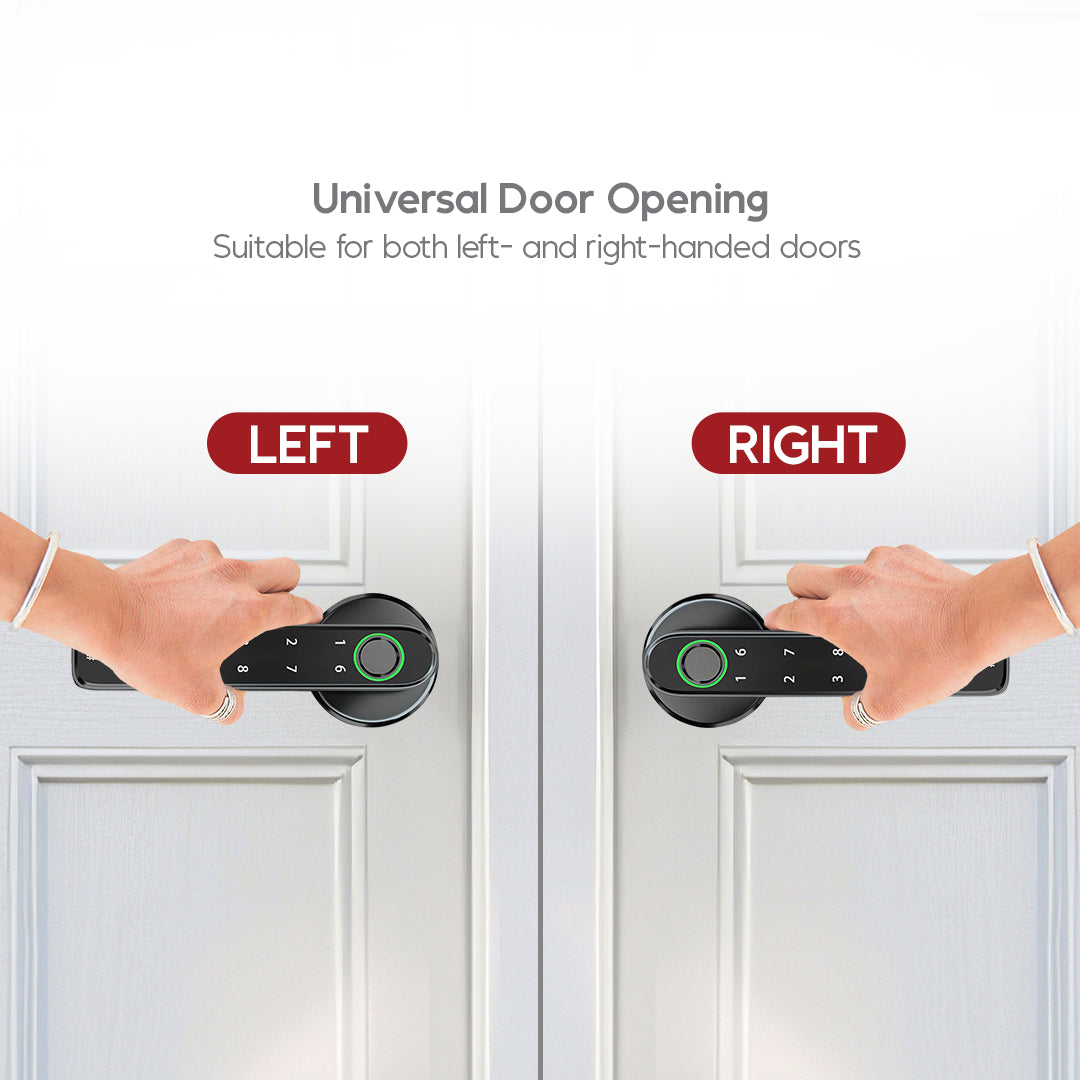

Universal Door Opening: Suitable for both left- and right-handed doors.

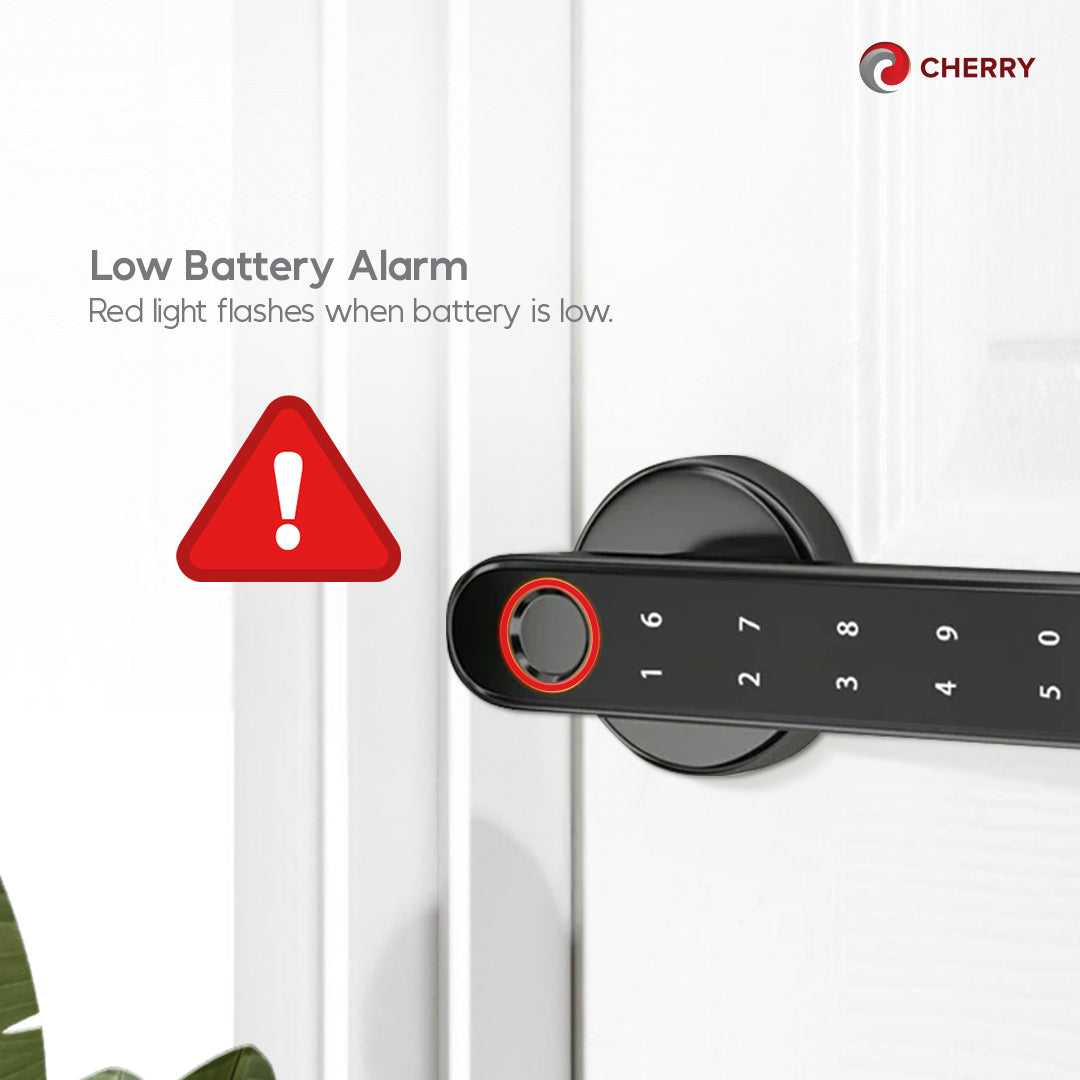

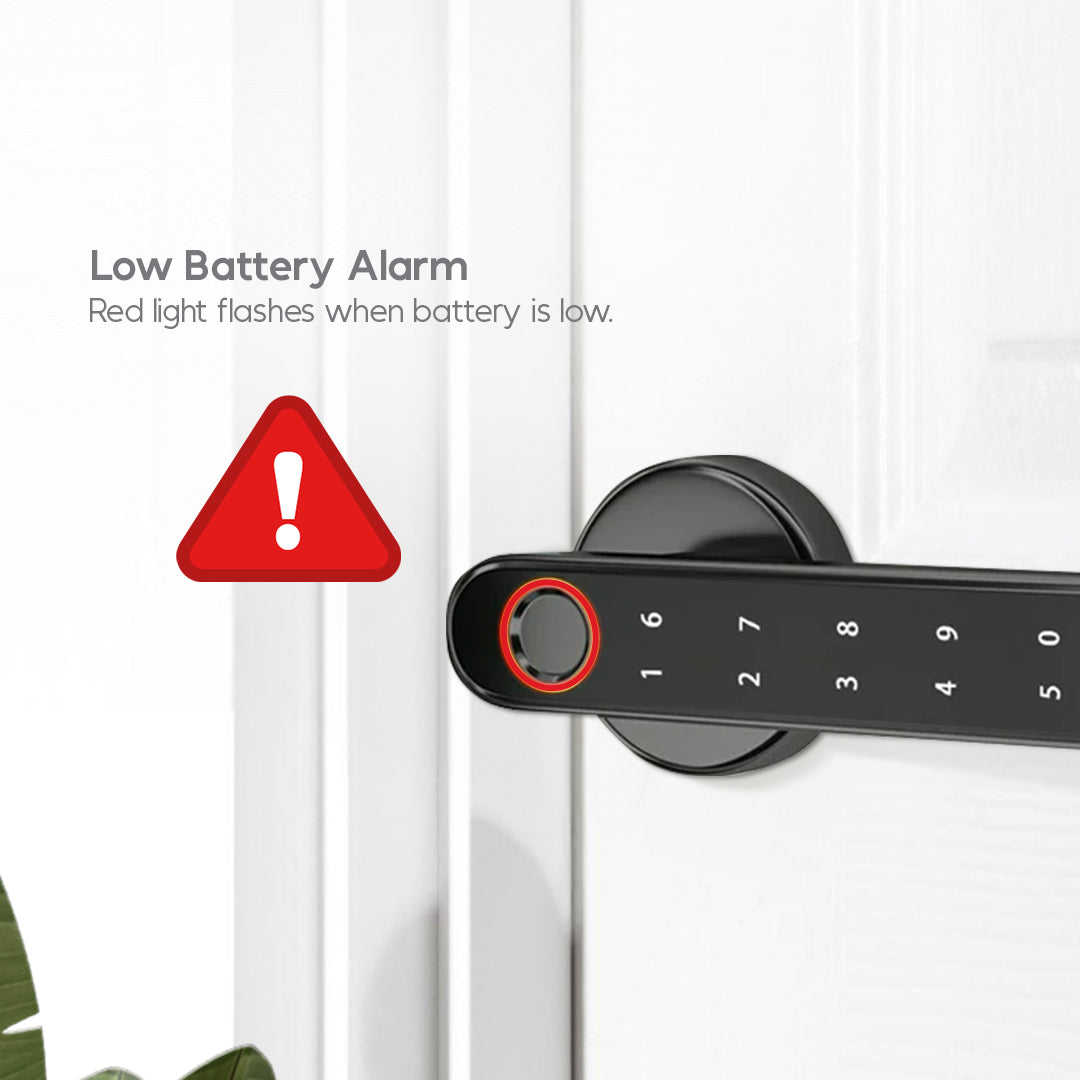

Low Battery Alarm: Red light flashes when battery is low.

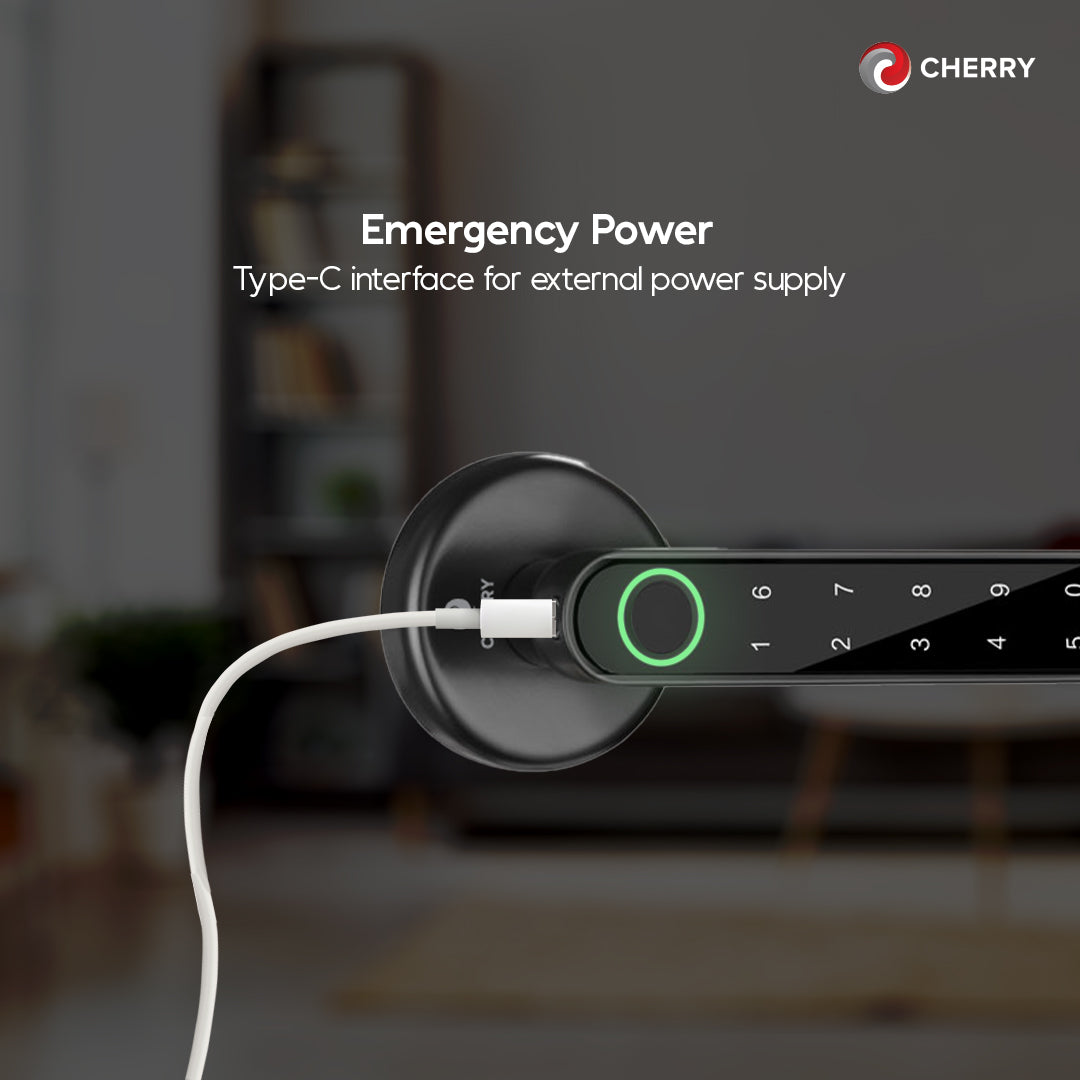

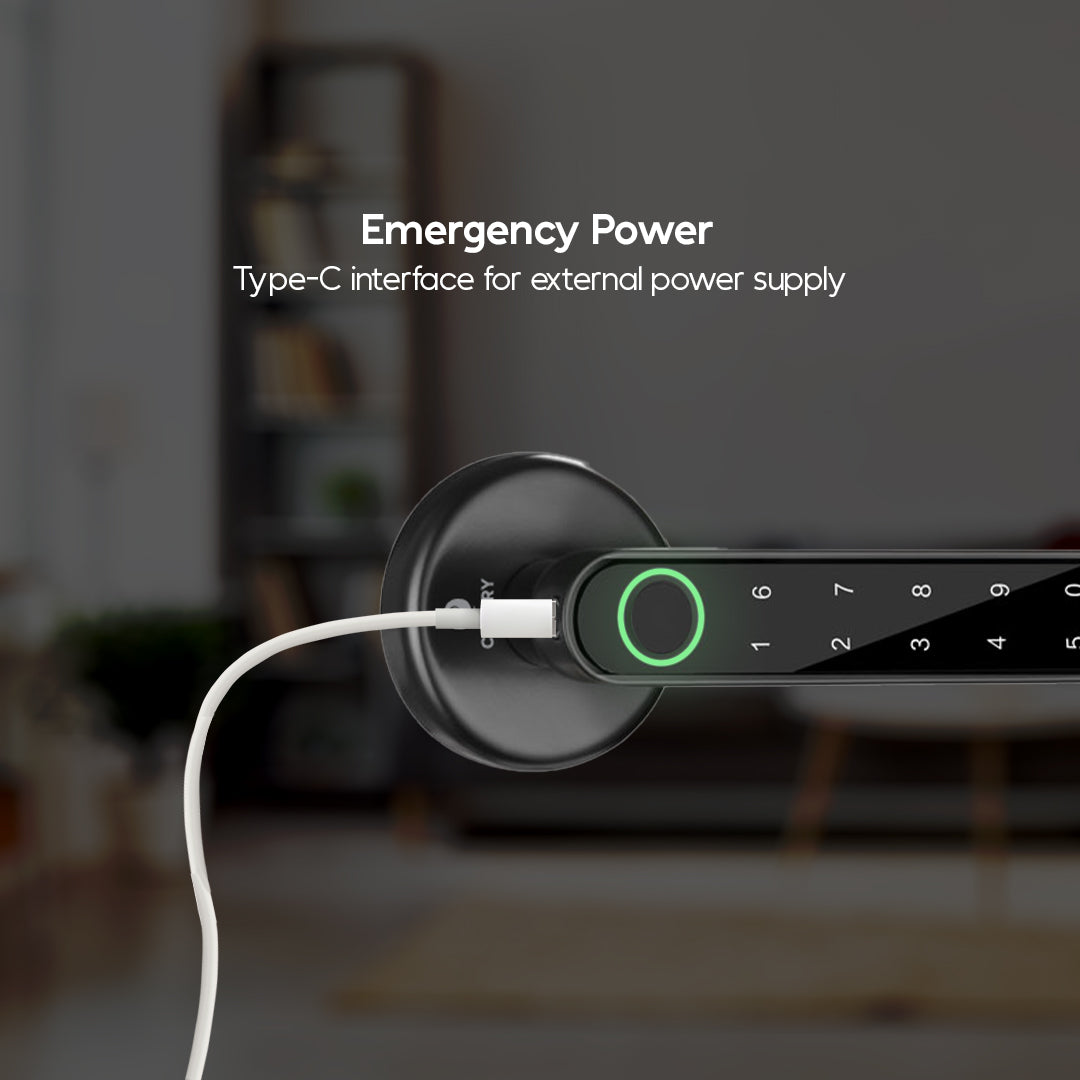

Emergency Power: Type-C interface for external power supply
Product Model: 196 (TUYA Bluetooth)
Product Color: Black
Main Material of Handle: Zinc Alloy
Size: 150mm*65mm*28mm for single latch;
Suitable door thickness: 30 to 50mm
Suitable type of door: Wooden door
Type of Lock Body: Single latch (Adjustable length 60/70mm)
Material of Lock Body: Single Latch: Zinc Alloy;
Suitable for left hand door and right hand door: √
Where to install?: Interior doors like doors for room, apartment,hotel, office, school, warehouse, etc
Unlock and Lock Ways:
Fingerprint Unlock √
Code Unlock √
Card Unlock (RFID 14.3 Card) √
APP Unlock √
Voice Control √
（*requires gateway）
Key Unlock √
Remote Unlock √
（requires gateway）
Free Passage Mode √
(If you enable this feature, everyone can unlock the door without the passcodes or right fingerprints.)
Smart Function:
Remote management √
（requires gateway）
Access for family members √
Online Temporary One-Time Password √
Online Temporary Password Limited by date and time √
Offline Temporary One-Time Password √
Offline Temporary Password Limited by date and time √
Offline Dynamic Password √ (Maximum of 50 password)
Activity log (Wrong passcode or fingerprint alarm,unlock record) √
Anti-peep Code √ (Maximum of 20 password)
Low Battery Alert √ (Lower than 4.6±0.2V)
Technical Data:
Protocol: BLE 5.0
Number of Administrator on the App: 3
Number of Common users and guest on the App: 20
Type of Fingerprint Module: Semiconductor fingerprint module
Number of fingerprints: 100
Recognition time: ≤0.5s
Rejection rate: ≤0.01%
False acceptance rate: ≤0.0001%
Number of Codes: 100
Length of digit for each code: 6-10 digits
Number of all online temporary passwords: 50
Number of all offline temporary passwords: 50
(Only 10 offline one-time passwords or periodic passwords can be generated within in an hour)
Card Type: RFID 14.3
Number of Cards: 2
Number of Keys: 2
Battery: AAA*4 (excluded)
Emergency Power: Type C, 5V
Weather-proof: NO
Working Temperature: '-20℃-65℃
Working Humidity: 20%-93%RH
